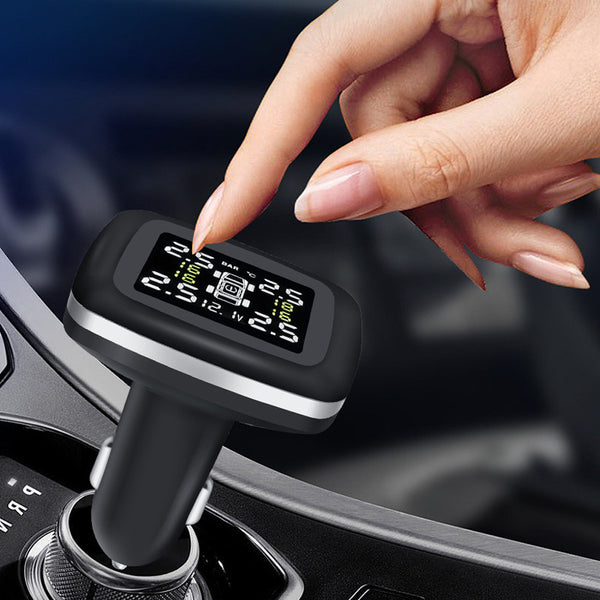

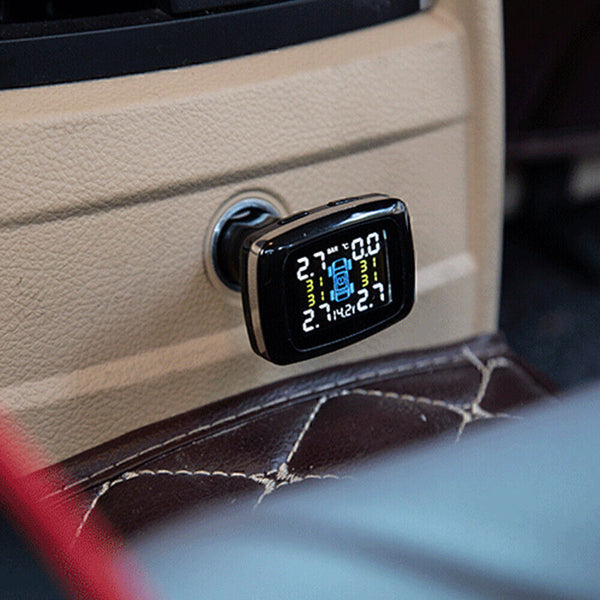

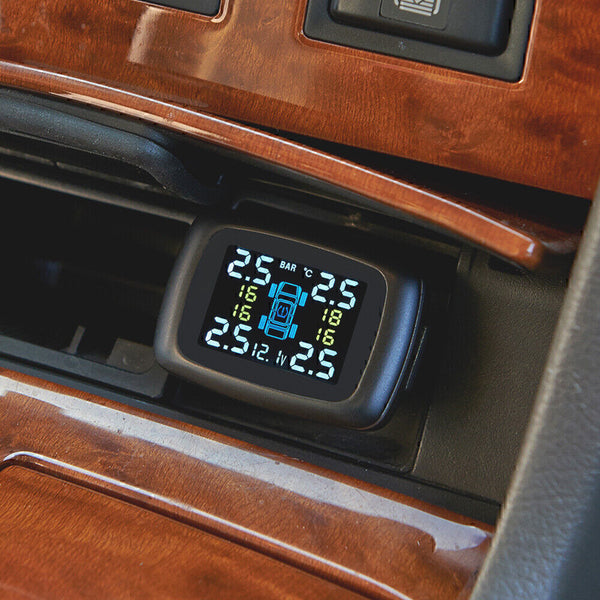

This TPMS system is integrated into a car cigarette lighter, providing real-time tire pressure and temperature monitoring for enhanced driving safety and convenience.
Features:
Specifications:
Please note:
Package Contents:
Features:
- The full-color screen constantly updates with real-time information on tire pressure and temperature, accompanied by visual and audible alerts for any irregularities.
- Offers 6 alarm modes, including fast leak, slow leak, high pressure, low pressure, high temperature, and low battery alerts.
- Users can freely set the screen brightness according to their preferences.
- Comes with 4 external sensors, boasting low power consumption and a long lifespan.
- Ensures high precision with minimal accepted tire pressure error (less than 0.1 bar) and tire temperature error (less than 3 degrees Celsius), even in harsh conditions.
- Saves space with its small size and lightweight construction.
- Simply plug the product into the car cigarette lighter, install the sensors on the four tires, and wirelessly pair them with the display for quick and easy installation.
- Automatically enters monitoring mode after 10 minutes of driving.
Specifications:
- Host Parameters:
- Material: PC
- Color: Black
- Modulation Method: ASK
- Frequency: 433.92MHz +/- 20.00MHz
- Working Temperature: Minus 20 to 80 degrees Celsius
- Storage Temperature: Minus 30 to 85 degrees Celsius
- Installation Location: Cigarette Lighter Port
- Input Voltage: DC 5V
- Working Current: ≤ 5MA
- Factory default Low-Pressure Value: 2.0Bar
- Factory default High-Pressure Value: 3.0Bar
- Factory Default Temperature Value: 68 degrees Celsius
- Product Size(LxWxH):
- Host: 4.8 x 3.4 x 7.5 cm
- Sensor Parameters:
- Material: Nylon+Copper
- Battery Type: 1 x 120mAh CR1632 battery (included)
- Water-resistant and Dustproof Rating: IP67
- Frequency: 433.92MHz±20.00MHz
- Sensor Pressure Range: 0-3.5BAR
- Storage Temperature: Minus30 to 86degrees Celsius
- Accurate pressure: +/-0.1Bar
- Accurate temperature: +/-3 degrees Celsius
- External working temperature: Minus 20 to 80degrees Celsius
- Built-in working temperature: Minus 40 to 120degrees Celsius
- External sensor size: 1.9 x1.9 x1.5 cm
Please note:
- Due to manual measurement, there might be a tolerance in the product size.
- Due to the lighting effects and shooting angles, the color of the item and that shown in the picture might have a nuance.

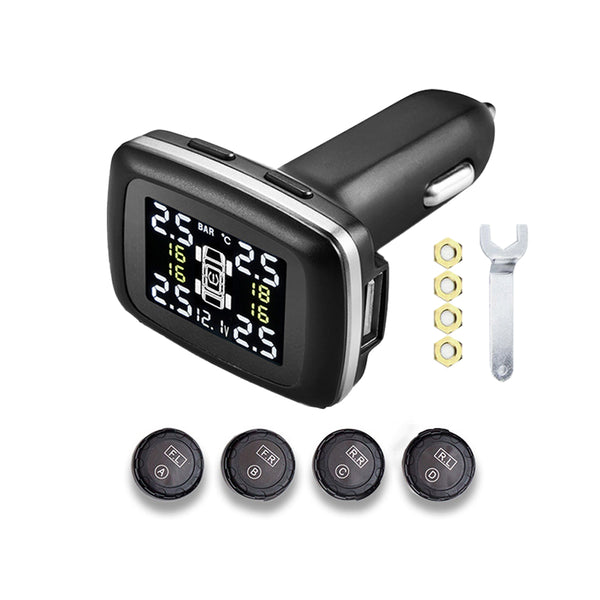

Package Contents:
- 1 x Host
- 4 x External Sensors
- 1 x Wrench Tool
- 4 x Nut Fitting
- 1 x Manual
- 1 x Christmas Storage Bag
